JMACT-26XP
RELAY GEN PURPOSE DPDT 1A 26.5V
part Number：
JMACT-26XP
Alternative Model：
manufacturer：
TE Connectivity Aerospace, Defense and Marine
category：
Relays >
Signal Relays, Up to 2 Amps >
describe：
RELAY GEN PURPOSE DPDT 1A 26.5V
RoHS：
YES
JMACT-26XP specifications
Mounting Type：
Through Hole
Part Status：
Active
Approval Agency：
-
Termination Style：
PC Pin
Coil Type：
Non Latching
Coil Insulation：
-
Relay Type：
General Purpose
Seal Rating：
Sealed - Hermetically
Contact Form：
DPDT (2 Form C)
Contact Rating (Current)：
1 A
Contact Material：
Silver Palladium (AgPd), Gold (Au)
Operating Temperature：
-65°C ~ 125°C
Features：
Diode
Grade：
Military
Operate Time：
2 ms
Coil Resistance：
1.56 kOhms
Switching Voltage：
115VAC, 28VDC - Max
Coil Voltage：
26.5VDC
Load - Max Switching：
115VA, 28W
Must Operate Voltage：
14.2 VDC
Must Release Voltage：
1.37 VDC
Coil Current：
19.8 mA
Release Time：
7.5 ms
Qualification：
MIL-R-28776/1
Products that you may be interested in
HFW1131K04
RELAY GEN PURPOSE DPDT 2A 26.5V
$106.24
More orders
V23079A1005B301
RELAY GEN PURPOSE DPDT 2A 24V
$2.71
More orders
V23079A1005B301
RELAY GEN PURPOSE DPDT 2A 24V
$1.61
More orders
V23079A1003B301
RELAY GEN PURPOSE DPDT 2A 12V
$1.57
More orders
SMGAD-5
RELAY GENERAL PURPOSE DPDT 1A 5V
$123.92
More orders

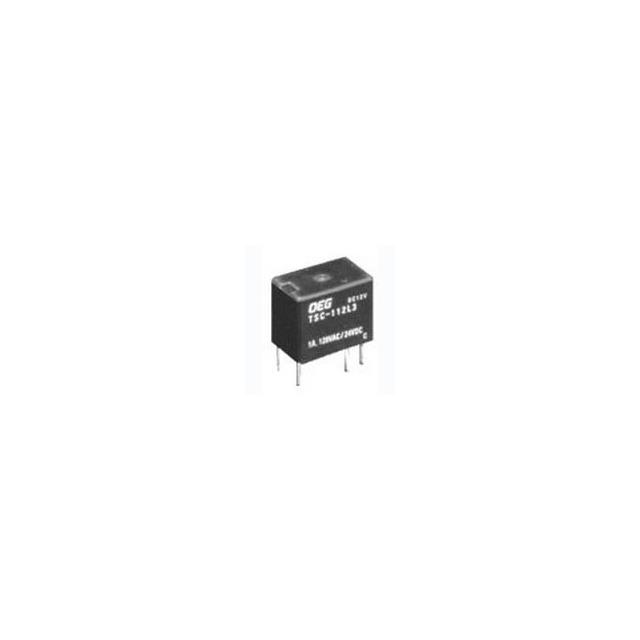

TSC-105D3H000
